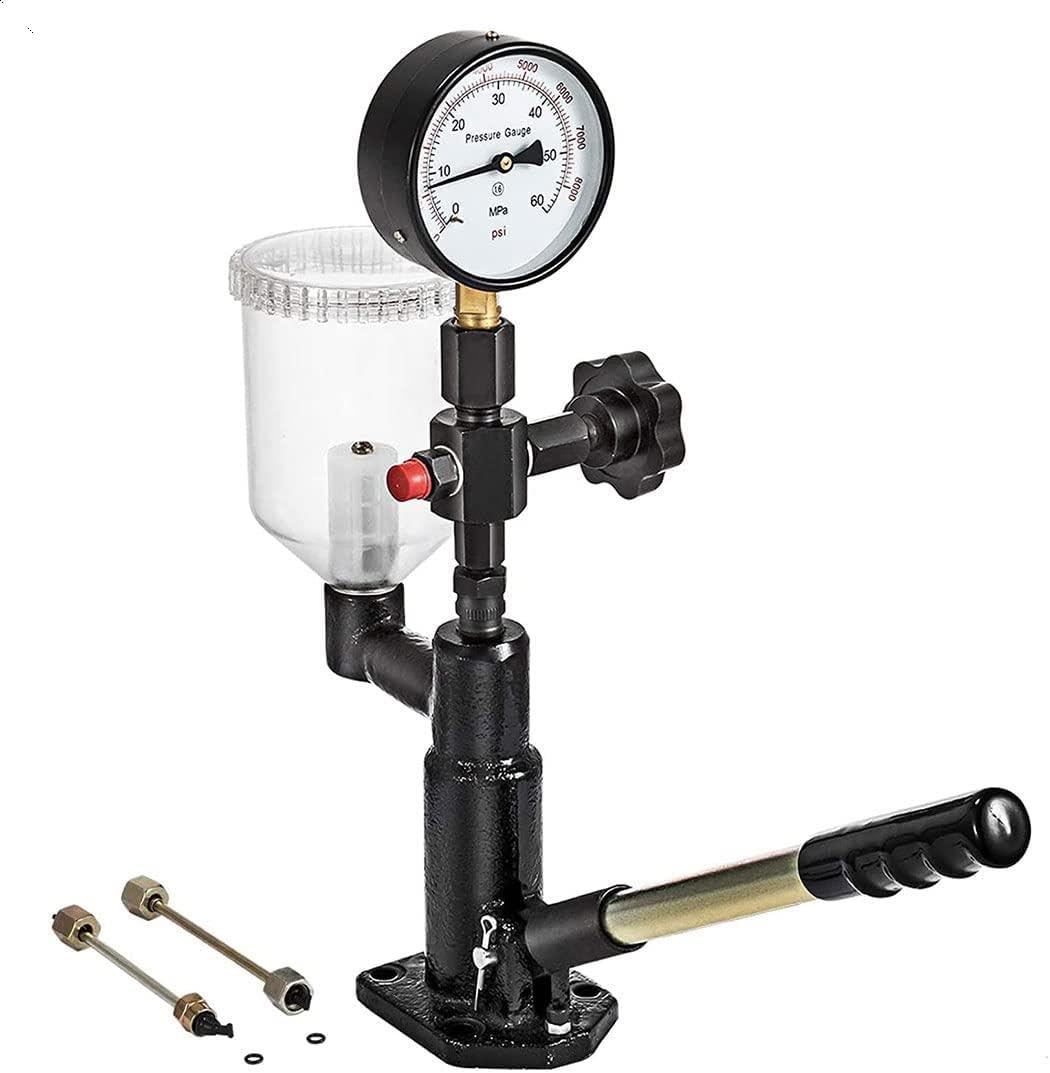

Fuel Pressure Tester 4000ml Heavy Duty Diesel Injector Tester Diesel with Dual Scale Pressure Gauge to Adjust Injector, 400bar 6000PSI

specifications color:Black color Measuring ranges: from 0 to 600 bar and from 0 to 8000 PSI Pressure range: 60 MPa (600 bar) For 6190/6200/6170 Diesel Can test pressure: ≥35.0M Pa (350bar) Fuel Tank Capacity: 4000ml Oil Pan: 0.8L Pressure: 0-60Mpa Plunger hole: 2/5'' Nozzle connection: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5 Applicable models: diesel engine vehicle Product Size: 5 x 4.5 x 16.5 inch / 12.7 x 11.4 x 41.9 cm GW: 6kg package content 1 x Diesel Injector Tester

• 【EXCELLENT TESTING CAPABILITY】- The tool set is capable of proper injector opening pressure test, leak test, vibration test, spray pattern test and atomization. With this multifunctional testing capability, the diesel injector tester is the ideal tool for testing diesel injectors in cars.
• 【WIDE MEASUREMENT RANGE】- With dual scale precision pressure gauge, the reading is between 0-600bar/0-8000psi, maximum test pressure up to 60Mpa. (100mm dial, 3/8 thread "BSP.) The transparent fuel measuring cup can hold 0.8L of oil and with the filter to facilitate kinds of tests.
• 【 CAST IRON】- Forged from cast iron, the diesel injector tester has greatly increased durability and rigidity. It also consists of a plastic tank cup to hold the fuel and a stainless steel pressure gauge to read the air pressure accurately.
• 【STANDARD ACCESSORIES】- The injector pop tester kit comes with a 60Mpa pressure gauge, a handle, A and B type high pressure hoses with mm (12 x 1.5) and (14 x 1, 5) for fittings and a 0.8L fuel bowl fitted with genuine for Bosch 5 micron filter, piston/element and pressure valve. Two additional oil hoses are included in the scope of for the application to be tested.
• 【WIDE APPLICABILITY】- The diesel tester is widely used in automotive and tractor diesel engine calibration. It is suitable for all types of diesel injectors except common rail diesel injectors (CRDI).
